🔹 Overview & Basic Information
Model NO.
LCD-SST-150-LN2-65K
Color Temperature
Cool White
Light Intensity
> 5,000 Lumens
Voltage
220V / 12V 24V 32V
Total Lumen Output
11250 Lm - 33560 Lm
Range for 1 Lux
Approx. 2500m - 3500m
Material
Stainless Steel + Marine Aluminum
💡 Product Description

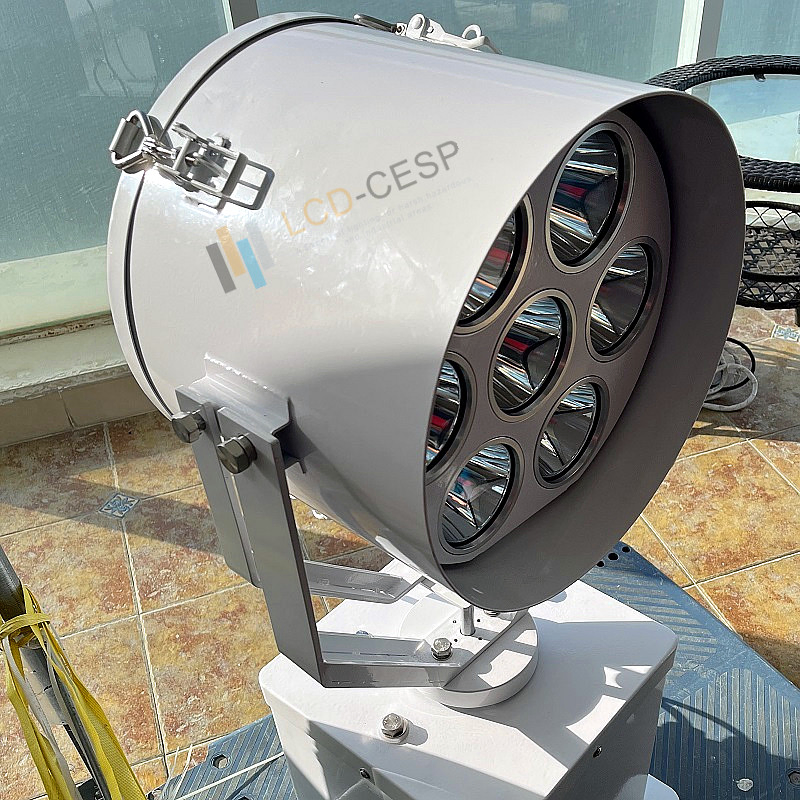

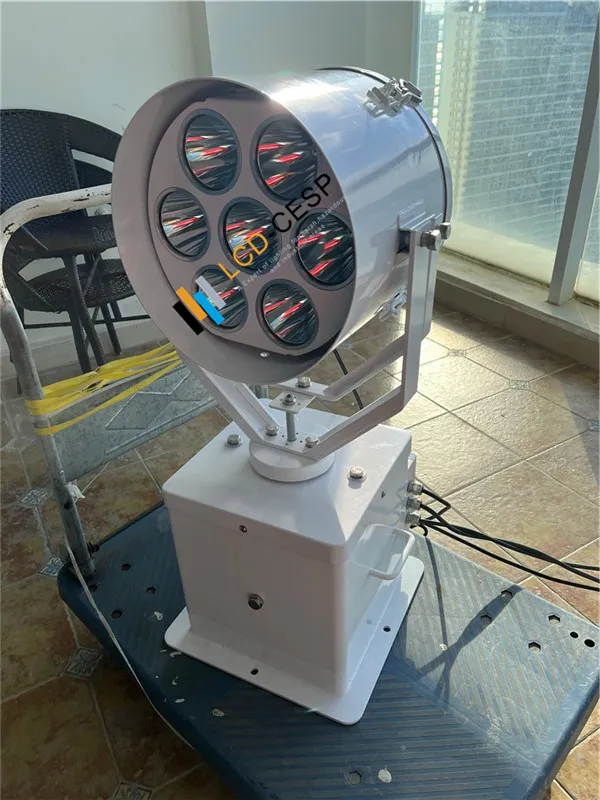

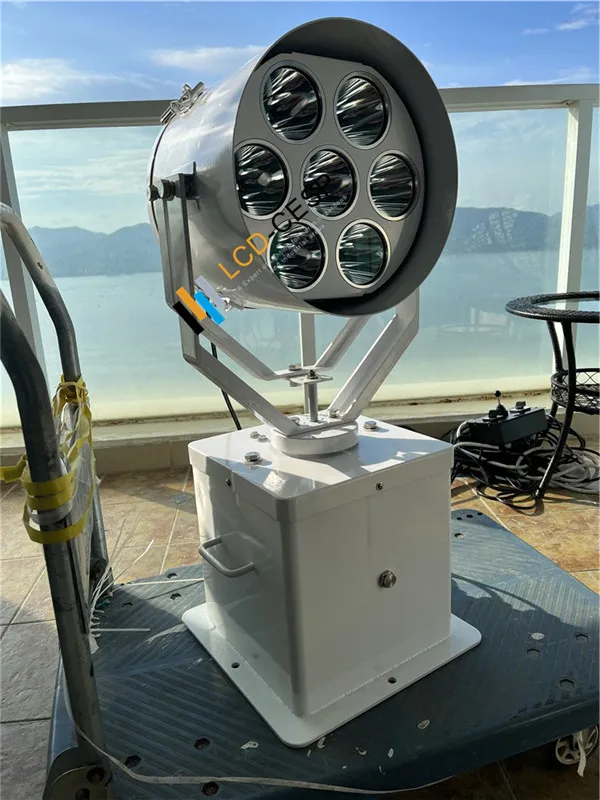

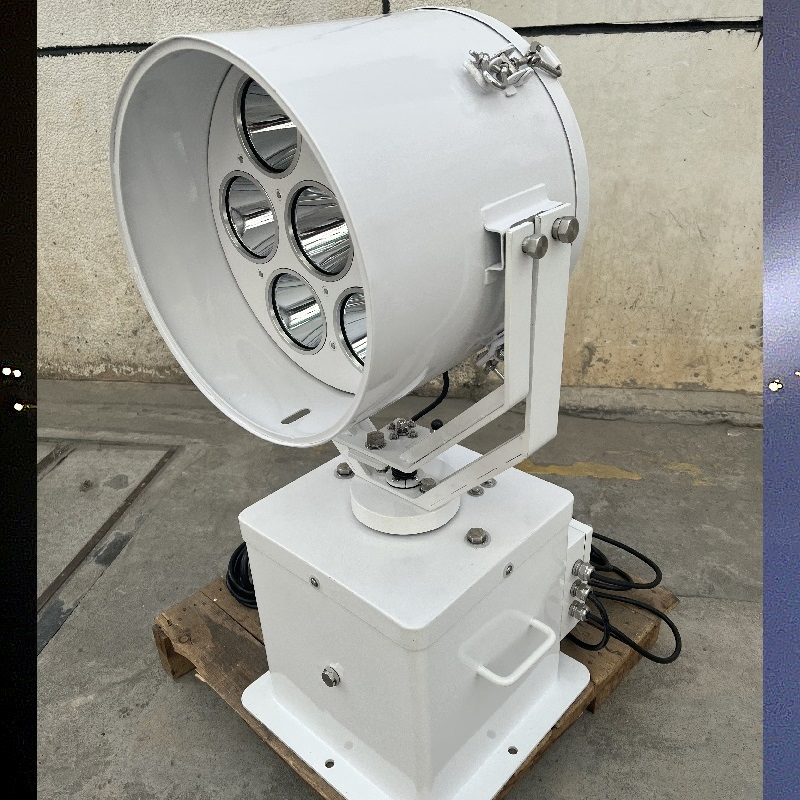

Advanced LED searchlights (80W-350W) serve as a high-efficiency replacement for traditional Halogen and Xenon lamps (1000W-5000W). Designed for the most demanding marine environments, these units deliver powerful, focused illumination at competitive operational costs.
- Wide Beam Models: Ideal for close-range operations such as man-overboard rescue.
- Narrow 2° Beam Models: Engineered for long-distance visibility and precision searching.
- Spectrum Optimized: Strong blue spectrum output, perfect for Arctic and low-visibility conditions.
- Low Maintenance: Significant lifespan increase over traditional lighting with lower energy consumption.
- Durable Construction: IK08-IK09 impact resistance and 5-6G vibration testing standards.

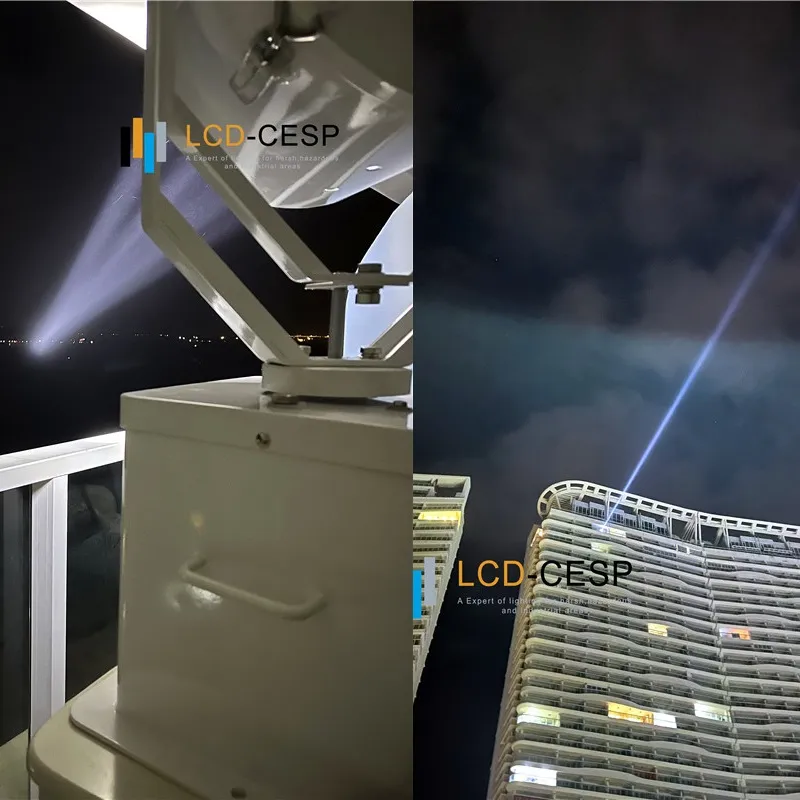

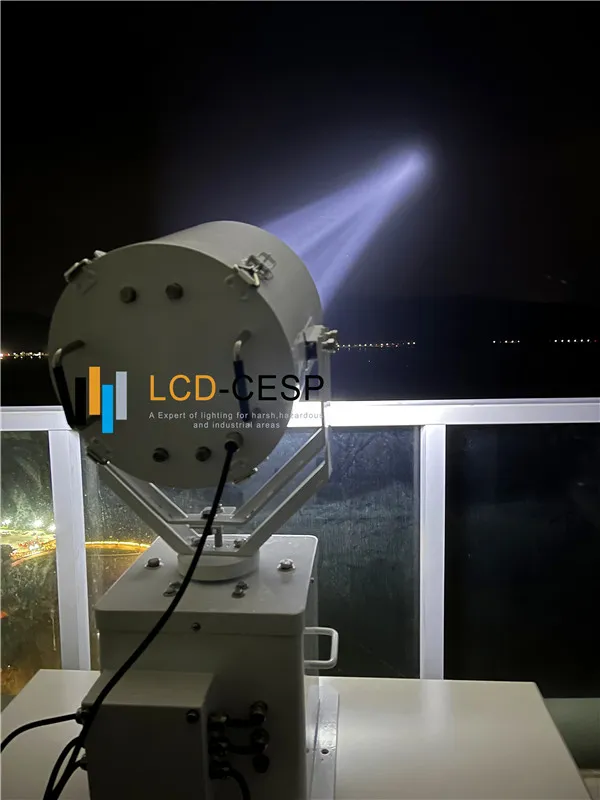

Our searchlight utilizes cutting-edge optics with a 2-degree laser-style parallel beam, reaching distances up to 5000 meters. This makes it an essential tool for navigation, surveillance, and obstacle detection (such as icebergs) during nighttime operations. Constructed with Marine Grade 1070 Aluminum and stainless steel hardware, it ensures longevity in harsh saltwater conditions.
⚙️ Technical Specifications
| Parameter |
Details |
| Available Modules | 4 / 5 / 7 / 9 / 12 Modules |
| Color Temperature | 6500K |
| Beam Angle | 2.5° |
| Candlepower | 3,673,851 cd |
| Protection Rating | IP68 (Waterproof) |
| Operating Temp | -30°C to +50°C |

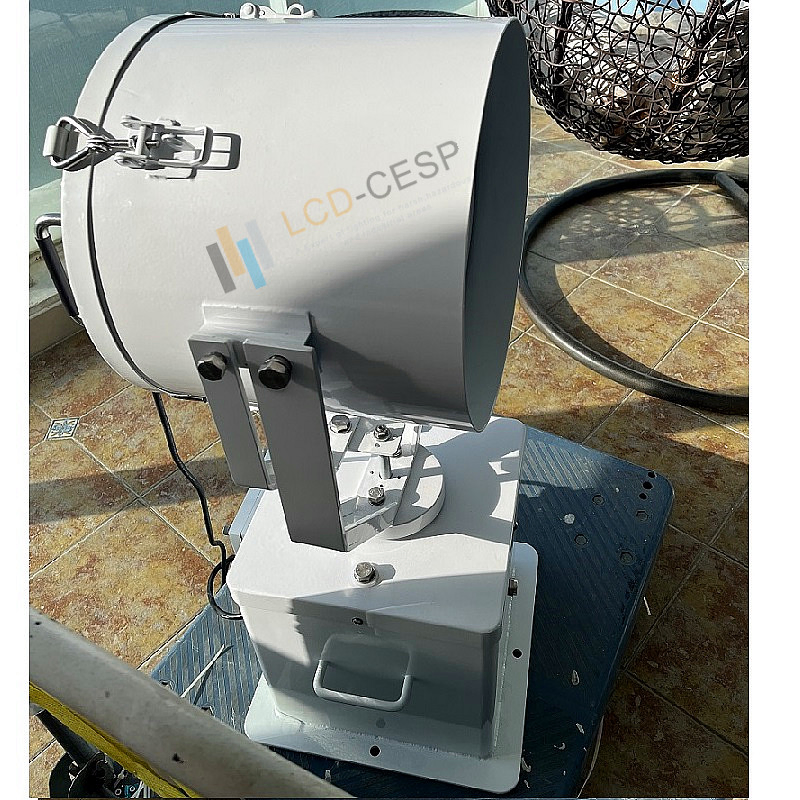

| Pan/Tilt Range | Pan 0°~ 350° , Tilt -30°~ +30° |
| Material | Corrosion Resistant Aluminum & Stainless Steel |
| Warranty | 5 years for marine applications |
❓ Frequently Asked Questions
How does LED compare to traditional Xenon or Halogen searchlights?
LED searchlights offer a much longer lifespan, lower power consumption (80W-350W vs 1000W+), and require virtually no maintenance, significantly reducing operating costs.
What is the maximum effective range of the beam?
Depending on the model and environmental conditions, our narrow-beam searchlights can reach distances between 2500m and 5000m.
Is this equipment suitable for harsh saltwater environments?
Yes, the housing is made of Marine Grade 1070 Aluminum and stainless steel with an IP67/IP68 waterproof rating, specifically designed for salt water resistance.
What are the control options for Pan and Tilt?
We offer manual, cabin-controlled, and electronic remote control (MC & EC types) with a pan range of 350° and a tilt range of +/- 30°.
Does weather affect the illumination distance?
Yes, while our lights are powerful, illumination distance can decrease in conditions with heavy smoke, fog, or dense smog.
What certifications do these marine lights have?
Our products meet high industry standards and carry certifications including CE, RoHS, TUV, SAA, and ETL.
